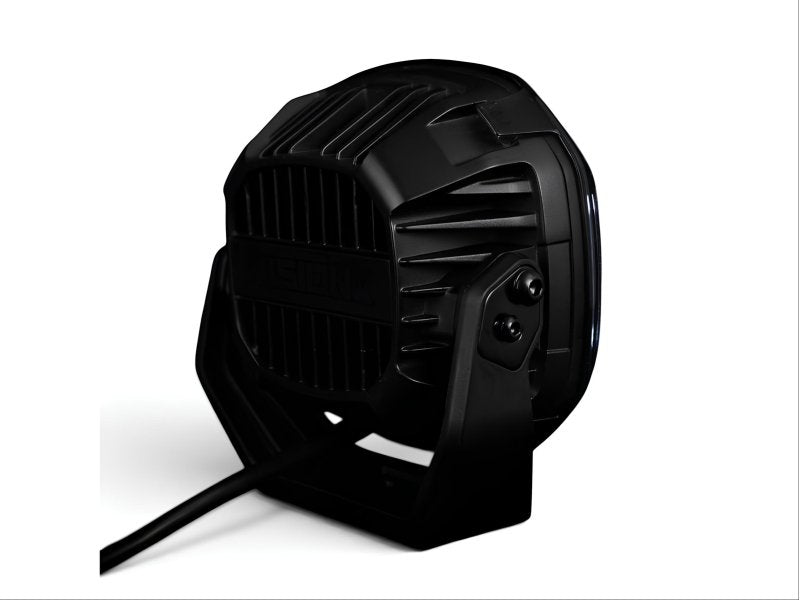

Explora 9'' 40 LEDs 200W VISION X LED headlight. The VISION
LED lighting
Its specific reflectors generate a Hybrid beam which distributes the light in length and width, with an announced range of 480 m at 1 lux and a lighting width of up to 50 m at 1 lux.
Equipped with 40 5 W LEDs, this projector develops up to 200 W, with 13,600 raw lumens and 9,700 effective lumens.
An integrated intelligent control unit makes connection easy with color-identified cables.
Features
- Power: 200 W max. / 130 W E-Boost / 18 W E-mark
- LED: 40 × 5 W
- Luminous flux: 13,600 lm gross / 9,700 lm effective
- Range: 480 m at 1 lux / 700 m in pair
- Position light: white / orange
- Color temperature: 5,700 K
- Tension: 11–32 V DC
Main features
Materials and construction
The aircraft-grade aluminum housing, polycarbonate lens, and composite mount are designed for exposed uses.
Dimensions and capacity
Its specific reflectors generate a Hybrid beam which distributes the light in length and width, with an announced range of 480 m at 1 lux and a lighting width of up to 50 m at 1 lux.
Used in pairs, VISION X has a range of up to 700 m and a width of 60 m.
- Beam: Hybrid, reach + width
- Lighting width: 50 m / 60 m in pair
Assembly and fixing
VISION X also provides the wiring, nuts, mounting brackets and a removable cover required for installation.
Operation and use
The VISION X Explora 9'' 200 W LED headlight is designed to enhance vehicle lighting by combining long range and side coverage.
A white or orange position light completes the lighting functions.
With IP68/IP69K protection, 6.9gRMS vibration resistance and an operating range of -40°C to +60°C, the headlight is suitable for environments encountered in 4x4 and off-road.
- Protection: IP68 / IP69K
The VISION X Explora 200 W E-Boost LED headlight improves both long-distance visibility and peripheral lighting thanks to its Hybrid beam.
Its range of up to 480 m per unit, its E-mark approval and its IP68 / IP69K design make it additional lighting suitable for 4x4 and vehicles used at night in demanding conditions.
Items provided
- Contents: VISION X Explora headlight, wiring, brackets, nuts and removable cover.
Ideal for 4x4, Camping and off-road travel
With IP68/IP69K protection, 6.9gRMS vibration resistance and an operating range of -40°C to +60°C, the headlight is suitable for environments encountered in 4x4 and off-road.
- Off-road trips
Technical specifications
| Feature | Specification |
|---|---|
| Brand | VISION |
| Weight | 3.8 kg |
Compatibility and important information
Check the compatibility of this product with your vehicle and your configuration before ordering. Information not specified by the supplier must be confirmed with Xperts4x4.
The VISION X Explora 9'' 200 W LED headlight is designed to enhance vehicle lighting by combining long range and side coverage.
Its specific reflectors generate a Hybrid beam which distributes the light in length and width, with an announced range of 480 m at 1 lux and a lighting width of up to 50 m at 1 lux.
The E-Boost function allows you to select a power of 130 W to increase light intensity, while the E-mark approved configuration operates at 18 W.
The aircraft-grade aluminum housing, polycarbonate lens, and composite mount are designed for exposed uses.
VISION X also provides the wiring, nuts, mounting brackets and a removable cover required for installation.
The product is E-mark approved and complies with ECE R10, ECE R148 and ECE R149 standards.
- Approvals: ECE R10, R148, R149
Its range of up to 480 m per unit, its E-mark approval and its IP68 / IP69K design make it additional lighting suitable for 4x4 and vehicles used at night in demanding conditions.
Installation
VISION X also provides the wiring, nuts, mounting brackets and a removable cover required for installation.
Warranty
The specific warranty period for this reference is not specified in the available manufacturer information.
